Air Operated Double Diaphragm Pumps
Iwaki Air AODD pumps are an ideal choice for the safe transfer of a limitless variety of liquids across many industries: corrosive chemicals, liquid slurries, abrasive particle slurries,viscous liquids, fuel, oils, glues, inks, and flammable liquids, just to name a few.

Download IwakiAir Brochure
(pdf)

  • Food and Beverage
  • Concrete Additives
  • Water Treatment
  • Oil and Gas
  • Chemical
  • Metal Finishing

  • Battery Manufacturing
  • Semiconductor
  • Pulp Paper and Packaging
  • Textiles and Carpet
  • Paints and Coatings

pH/ORP



1/4" TC-X030 Series (PVDF/PTFE only)

The TC-X030 Series compact pumps offer minimal flow rates and feature the new Looped C™ Air Motor Technology (patent pending).

  • Maximum Flow Rate: 2.1 GPM (8.0 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: PVDF (Kynar®)
  • Spool Valve type: Looped C-Spring Valve
  • Certifications: CE, ATEX

Download literature (pdf)


pH/ORP

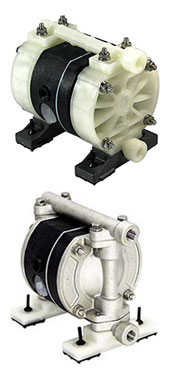

1/4" TC-X050 Series

TC-X050 series are small compact pumps with an exceptional flow rate designed to be installed into liquid transfer applications. Featuring the new Looped C™ Air Motor Technology (patent pending). Multi-port options available.

  • Maximum Flow Rate: 3.0 GPM (11.5 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Stainless Steel, Aluminum, Glass Fiber Reinforced Polypropylene, Pure Polypropylene, PVDF (Kynar®), Acetal (POM)
  • Spool Valve type: Looped C-Spring Valve

Download literature (pdf)




pH/ORP

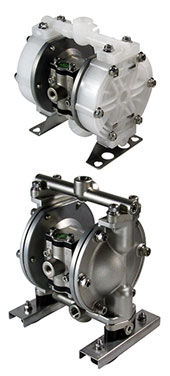

3/8" TC-X100/101 Series
TC-X100/101 pumps are specially designed for extremely low speed fluid transfer, frequent start/stop and dead head type applications with a choice of multi-port options.

  • Maximum Flow Rate: 6.1 GPM (23 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Stainless Steel, Aluminum, Glass Fiber Reinforced Polypropylene, Pure Polypopylene
  • Spool Valve type: Spring-less valve

Download literature (pdf)




pH/ORP





3/8" TC-X102 Series
TC-X102 Series are compact pumps available only in Glass Fiber Reinforced Polypropylene (PPG) and offer a chemically resistant air section.

  • Maximum Flow Rate: 6.3 GPM (24 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Glass Fiber Reinforced Polypropylene (PPG)
  • Spool Valve type: C-Spring Valve

Download literature (pdf)





pH/ORP






1/2" TC-X151 Series
The TC-X151 pump is specially designed for frequent start/stop, dead head and high pressure type applications.

  • Maximum Flow Rate: 14.3 GPM (54 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: PVDF, Glass Fiber Reinforced Polypropylene, Polyoxymethylene (POM), Aluminum, Stainless Steel
  • Spool Valve type: C-Spring, Flat Valve

Download literature (pdf)





pH/ORP






1/2" TC-X150 Series
The TC-X150 pump is specially designed for frequent start/stop, dead head and high pressure type applications.

  • Maximum Flow Rate: 7.4 GPM (28 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Glass Fiber Reinforced Polypropylene (PPG), Polyoxymethylene (POM)
  • Spool Valve type: Spring-less Spool
  • Check Valve Type: Flat Valve or Ball Valve

Download literature (pdf)





pH/ORP

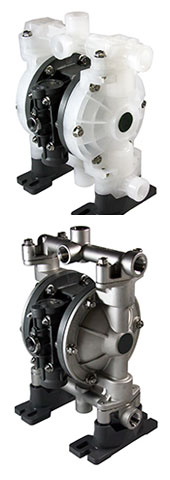

1/2" TC-X152 Series

The TC-X152 pump is designed to offer exceptional flow rates, high chemical resistance, improved leak prevention and increased reliability. The TC-X152 series offer excellent flow rates, low air consumption and solids handling capabilities. Featuring new Looped C™ Air Motor Technology (patent pending).

  • Maximum Flow Rate: 15.8 GPM (60 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Stainless Steel, Aluminum, Pure Polypropylene & PVDF (Kynar®)
  • Spool Valve type: C-Spring valve

Download literature (pdf)





pH/ORP






3/4" TC-X202 Series - Non-Metallic
'
TC-X202 3/4" pumps are available in Glass Fiber Reinforced Polypropylene (PPG) with a PPG air motor section for exceptional chemical resistance. Featuring new Looped C™ Air Motor technology (patent pending). Both flange and threaded connections available.

  • Maximum Flow Rate:31.7 GPM (120 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Glass Fiber Reinforced Polypropylene (PPG) & PVDF
  • Spool Valve type: C-Spring Valve

Download literature (pdf)





pH/ORP






1" TC-X252 Series

TC-X252 pumps are 1" pumps available in PVDF high chemical resistance. Featuring new Looped C™ Air Motor technology (patent pending). Both flange and threaded connections available.

  • Maximum Flow Rate:43.6 GPM (165 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Available in: Glass Fiber Reinforced Polypropylene & Kynar®
  • Spool Valve type: C-Spring Valve

Download literature (pdf)





pH/ORP






1" TC-X253 Series - Metallic

TC-X253 pumps are heavy duty, robust pumps with excellent leak resistance and reliability. They offer exceptional flow rates and solids handling capabilities..

  • Maximum Flow Rate: 58.1 GPM (220 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Maximum Solids Size: 6.5 mm
  • Available in: Stainless Steel, Aluminum and Cast iron
  • Shuttle Valve type: C-Spring Valve

Download literature (pdf)





pH/ORP














1 1/2" TC-X400 - Non-Metallic
TC-X400 pumps offer excellent flow rates and a new heavy duty body design. The pumps can operate with variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can easily handle high pressure and long discharge lines.

  • Maximum Flow Rate:100.4 GPM (380 LPM)
  • Maximum Discharge Head: 230 FT (70 m)
  • Maximum Solids Size: 7 mm
  • Available in: Glass-filled Polypropylene, PVDF (Kynar®)
  • Shuttle Valve type:Coil Spring Air Motor

Download literature (pdf)



pH/ORP






2" TC-X500 Series
TC-X500 Series pumps offer excellent flow rates and a new heavy duty and compact body design. They can operate at variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can easily handle high head pressure and long discharge lines.

  • Maximum Flow Rate: 190.2 GPM (720 LPM)
  • Maximum Discharge Head: 280 FT (85 m)
  • Available in: Stainless Steel, Aluminum, Polypropylene & PVDF
  • Spool Valve type: Coil Spring Air Spool

Download literature (pdf)




pH/ORP

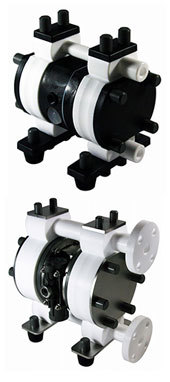

TC-XTT Series

TC-XTT pumps are a special range of PTFE pumps designed to transfer highly corrosive chemicals. These pumps can also be used in some clean room-type chemical transfer processes such as in the manufacture of semiconductors.
pH/ORP

3" TC-X800 Series
TC-X800 Series pumps offer excellent flow rates and a new heavy duty body design. The pumps can operate at variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can easily handle high head pressure and long discharge lines.

  • Maximum Flow Rate: 211.3 GPM (800 LPM)
  • Maximum Discharge Head: 280 FT (85 m)
  • Available in: Stainless Steel, Aluminum, Polypropylene & Cast Iron
  • Spool Valve type: Robust Coil Spring Air Motor

Download literature (pdf)
